FKMSS Series
Flokal B.V. FKMS series are Micro-Flow Metal Tube Variable Area Flow Meter (Rotameter)

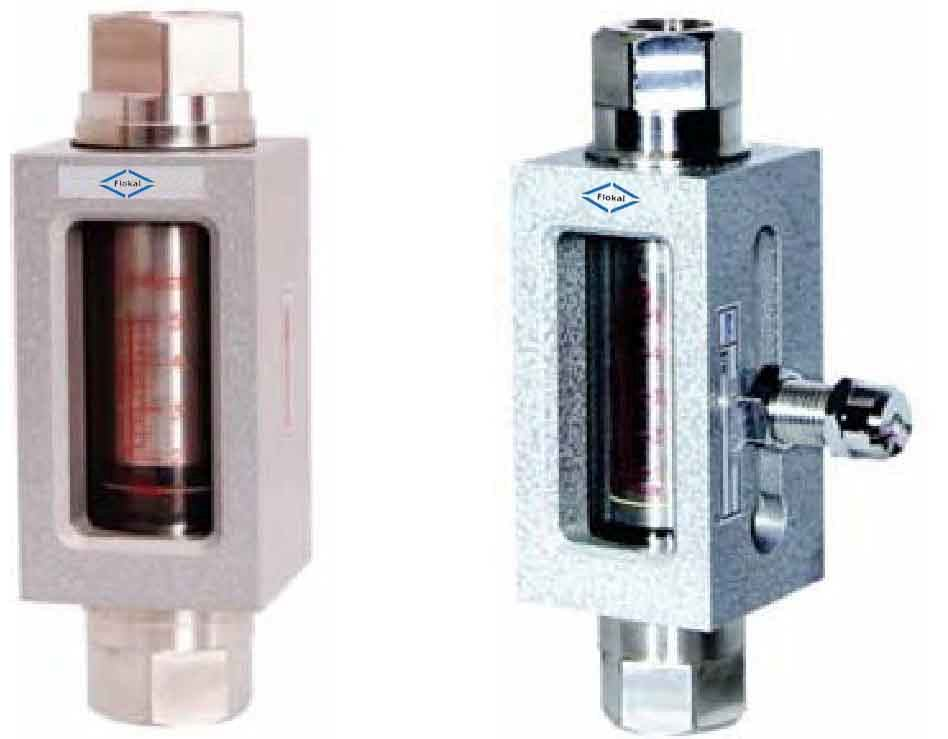

Product image:
Flow Range - Air:
Gases – Air (20°C, 0MPaG): 0,3-80Nm3/h
Flow Range - Water:
Liquids–Water (Density 1.0 g/cm3 , Viscosity 1.0mPas): . 5-3000 m3/h
Accuracy:
±2% of F.S.
Operating Temperature:
-20 to 120°C within flange pressure and temperature rating
Operation Pressure:
Max. 4.1 MPaG at ambient temperature; Max. 3.3 MPaG at 120°C
Output:
A high or low alarm with reed switch; 4 to 20mADC, accuracy ±1% of F.S. (Against scale plate)
PDF documentation:
