These flow meters are Flange(PT’’) connecting flow meters convenient for use with industrial pipe, and have high effectiveness and stability with simple structure. They are superior flow meters using taper tube made of Pyrex Glass constructed to improve temperature limit and mechanical qualities.

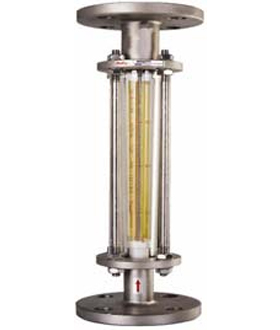

Product image:
Flow Range - Air:
0,3 - 1500 m3/h
Flow Range - Water:
0,03 - 80 m3/h
Accuracy:
Liquid: ±2.0% F.S. (option ±1.0% F.S.); Gas: ±2.5% F.S. (option ±2.0% F.S.);
Operation Pressure:
Max. 12 kgF/cm2G
Operating Temperatur:
Max. 120°C (Metal Body, VitonSeal) (PVC Body 60°)
Output:
Alarm Switch Contact
PDF documentation:
PDF icon FKA-series.pdf
